Parameters
| Model No. | GX305S | GX80-20S | |
| Power Kw 400V/3Ph/50Hz |
5.5KW | 7.5KW | |
| Machine Size L*W*H cm |
2*0.6*1.3 | 3*1.5*2 | |
| Machine Weight Tons |
3.5 | 7.5 | |
| Pitch Range mm |
50-120 | 100-500 | |
| Max OD mm |
120 | 200 | 500 |
| Thickness mm |
2-5 | 5-8 | 10-20 |
| Max Width mm |
30 | 50 | 80 |
Products And Technologies
1. Main technology is continuous mould winding.

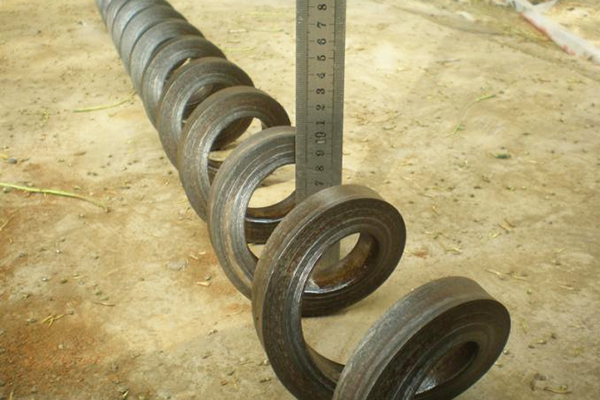

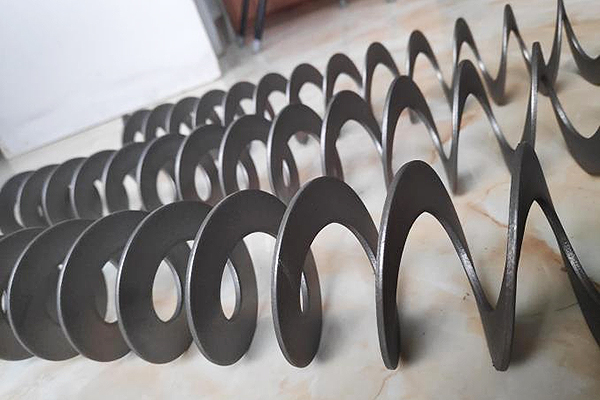

2. Same with the cold rolled screw flight, the equal thickness screw flight is also continuous length, high precision molding, the outer edge thickness is equal to the inner edge thickness.
3. In the three technologies, Mould winding technology is with maximum utilization of raw material, Production efficiency is similar with cold rolling technology.
