Continuous Screw Flight Winding Machine

Short Description:

1. Main technology is continuous mould winding.

2. Same with the cold rolled screw flight, the equal thickness screw flight is also continuous length, high precision molding

3. The outer edge thickness is equal to the inner edge thickness.

4. In the three technologies, Mould winding technology is with maximum utilization of raw material

5. Production efficiency is similar with cold rolling technology.

6.Workflow: Transport selected metal strips to forming area via feeding device (with necessary straightening); strips reach winding spindle, which rotates by set speed and spiral parameters, and strips wind around spindle continuously under guide mechanism; forming mold applies pressure to make strips fit spindle contour into spiral structure, which extends as winding continues; cutting device cuts formed blades after preset length, and finished products are obtained after simple trimming. – Relies on strip’s plastic bending and mold’s constraint for continuous forming of spiral blades.

Send email to us

Product Detail

Product Tags

Machine Advantages

- Continuous and efficient forming:
Continuous winding enables mass production in a short time, suitable for batch needs.

- Good forming consistency:
Precise control of parameters ensures high consistency in pitch and diameter, reducing errors from manual operation or segmented production.

- Strong material adaptability:
Processes ordinary metal strips and tough alloy strips, meeting diverse material needs.

- Flexible and convenient operation:
Equipped with control system for easy parameter adjustment, no complex mechanical adjustments, lowering operation difficulty.

- Compact structure:
Small footprint, saving space, suitable for workshops with limited space.

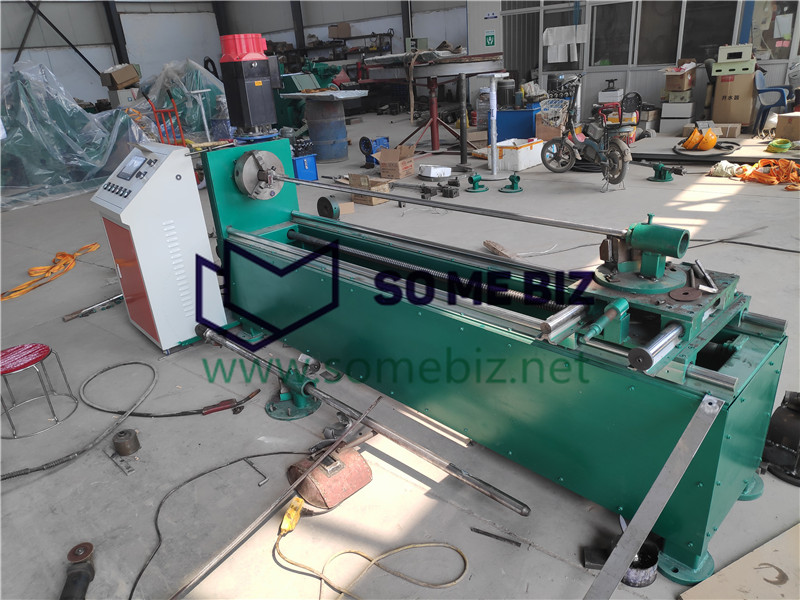

Continuous Screw Flight Winding Machine (1)

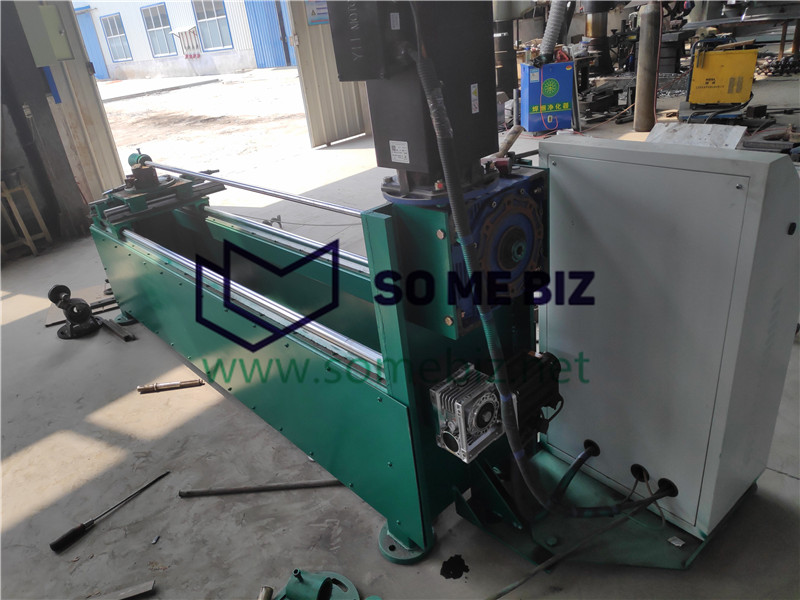

Continuous Screw Flight Winding Machine (2)

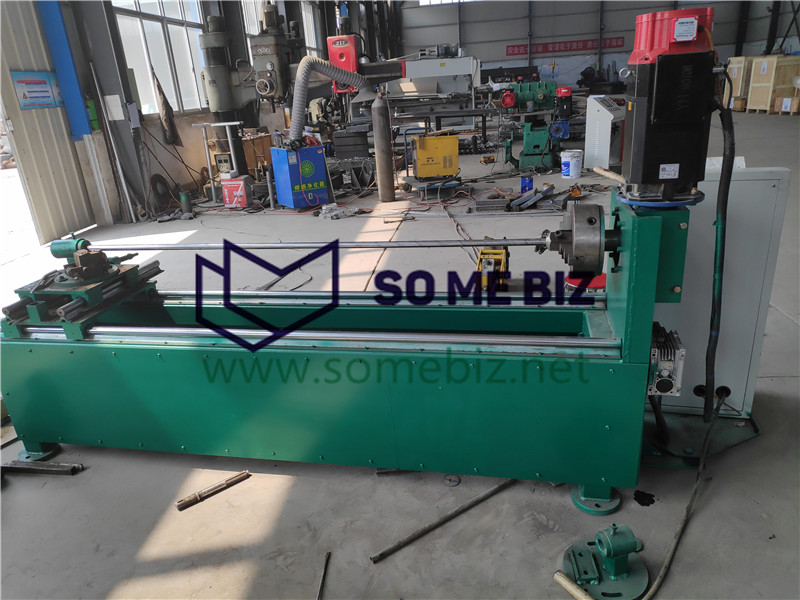

Continuous Screw Flight Winding Machine (3)

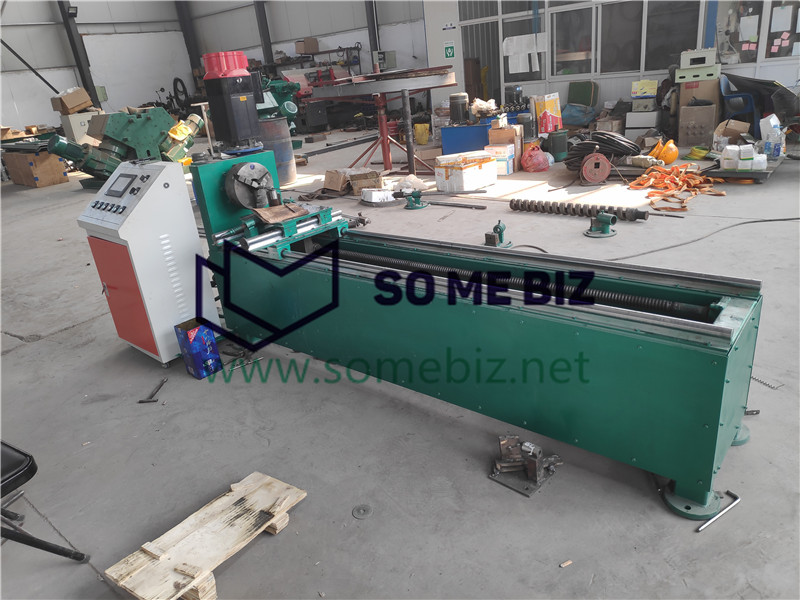

Continuous Screw Flight Winding Machine (4)

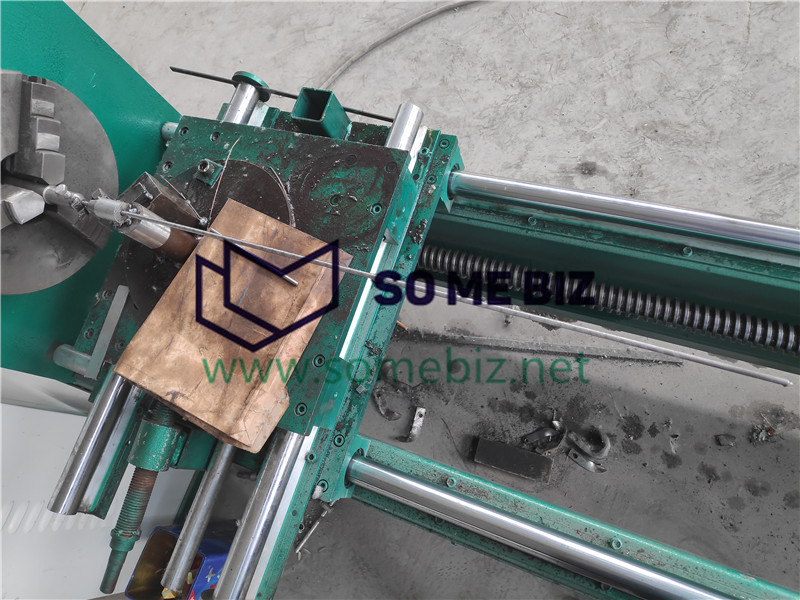

Continuous Screw Flight Winding Machine (5)

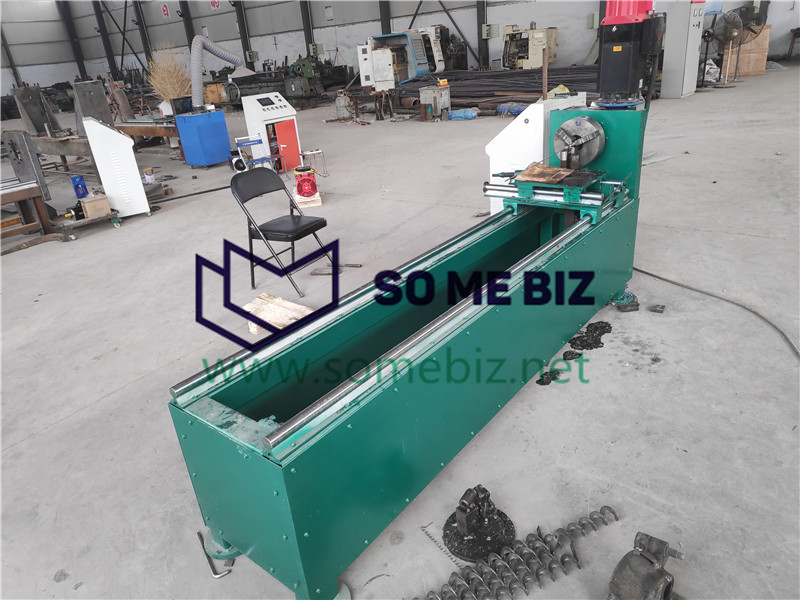

Continuous Screw Flight Winding Machine (6)

Production Range

Model No.	GX305S	GX80-20S
Power Kw 400V/3Ph/50Hz	5.5KW	7.5KW
Machine Size LWH cm	30.91.2	30.91.2
Machine Weight Tons	0.8	3.5
Pitch Range mm	20-120	100-300
Max OD mm	120	300
Thickness mm	2-5	5-8	8-20
Max Width mm	30	60	70
