Factory Profile
Hengshui So Me Business Co., Ltd. is a professional factory focus on the ground screw, screw flight, and cold rolling machine. Located in Hengshui City, Hebei province, convenience traffic, hot sale in domestic and oversea market.

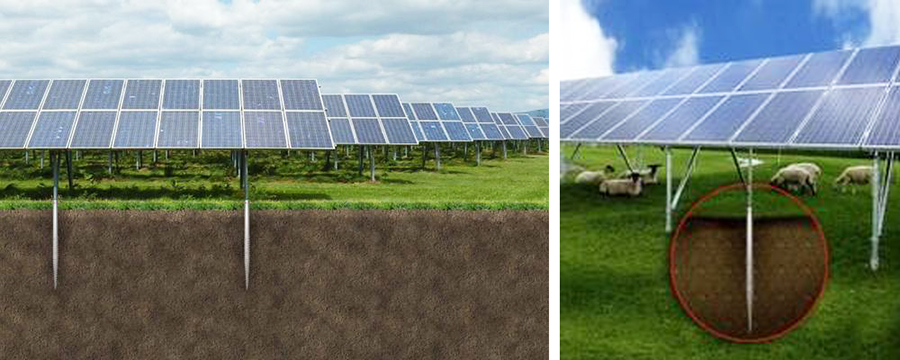

Our products has been widely used in quite a few solar stations in china, and exported to Middle East, Southeast Asia, Europe and Americas used for the foundation of solar, housing, fence, traffic board, advertising board etc.
Hope our professional experience and reliable quality could service you in the future! Let us work hand by hand together!
OEM Service
You could choose from our current models, or produce and design according to the sample and drawing. Believe that we could be your excellent partner!
Parameters
| Product Name | Ground Screw |

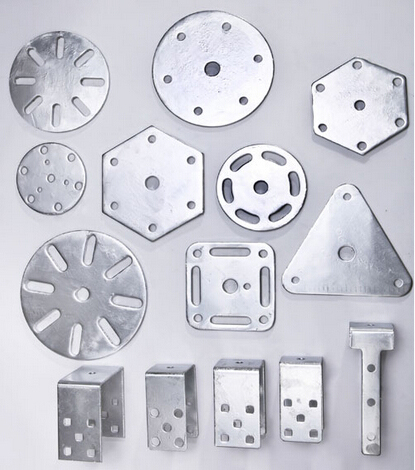

| Connect Style | Flange (Triangle, Square, Round, Hexagon), Bolts |
| Material | Carbon Steel Q235, ISO630 Fe360A |
| Surface treatment | HDG DIN EN ISO1461 |
| Length | 300mm-4000mm |
| Pipe OD | 48mm-219mm |
| Pipe Wall Thickness | 1.8mm-4.0mm |
| Flange Thickness | 8mm/10mm |
Advantage
Speed Work
Modern foundation construction without concrete!
High installation capacities with machinery.
Does not require welding.
Reliable Quality
Weld quality strictly achieve the international standard.
HDG Surface smooth, DIN EN ISO1461.
Low Cost
Cost foundation screw far below conventional concrete foundation.
Made in China and are more accessible than the original pile KRINNER.
Environmentally Friendly
Most stability, efficiency and sustainability – without any digging or concreting.
Possible to remove and reuse the piles.

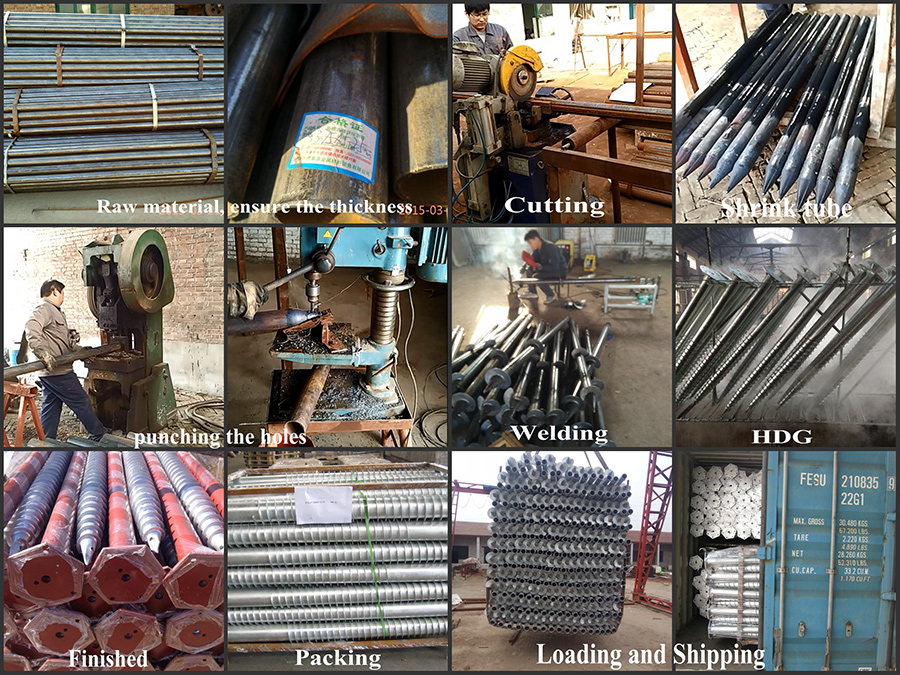

Ground Screw Production
Pipe Cutting - Pipe Tapering - Weld spiral - Weld Flange or Make Bolt - Pickling - HDG Surface Treatment - Packing - Transport

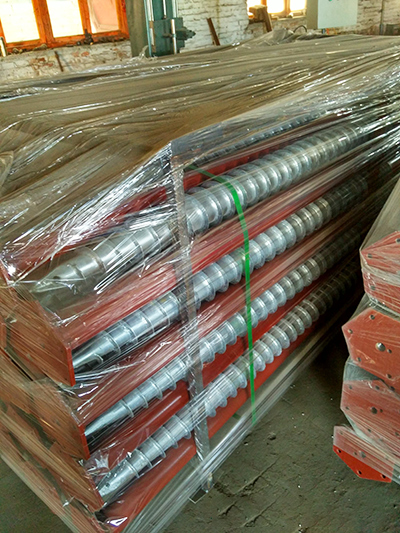

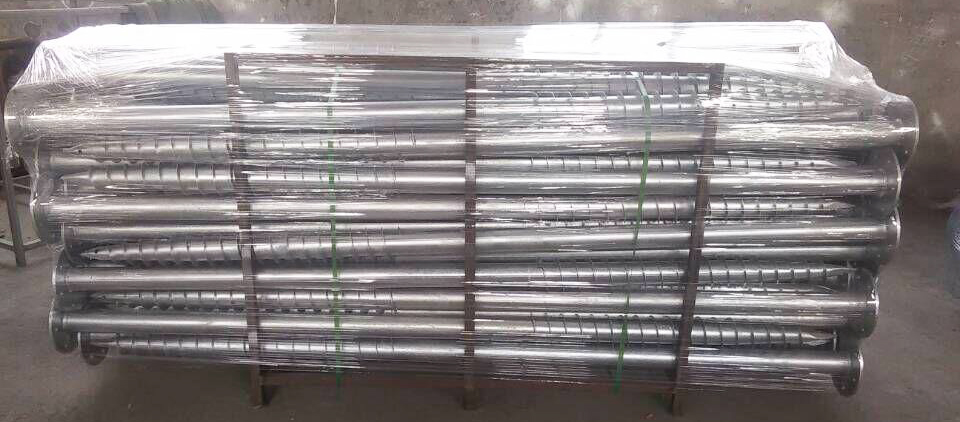

Waterproof Membrane Packing

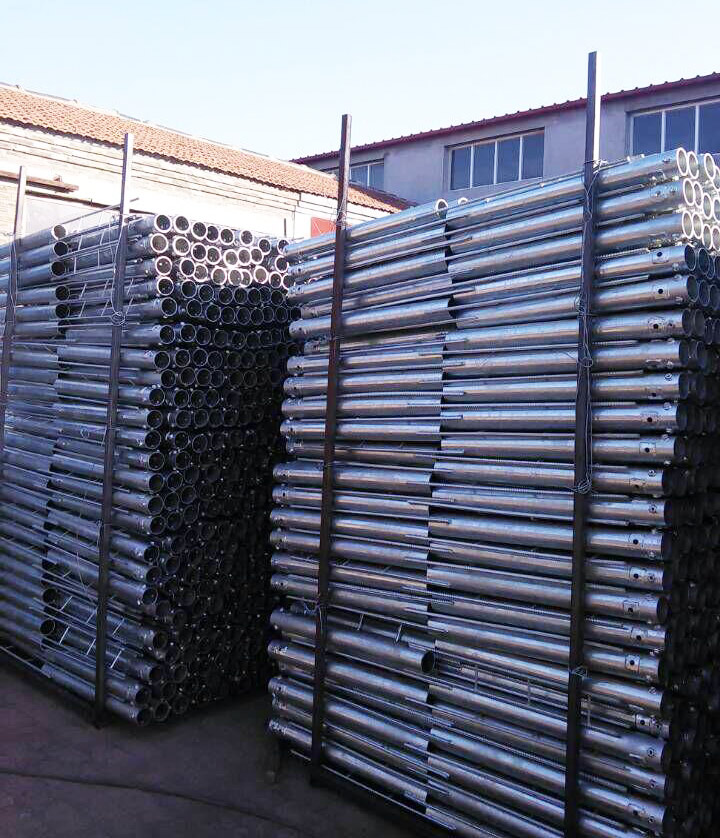

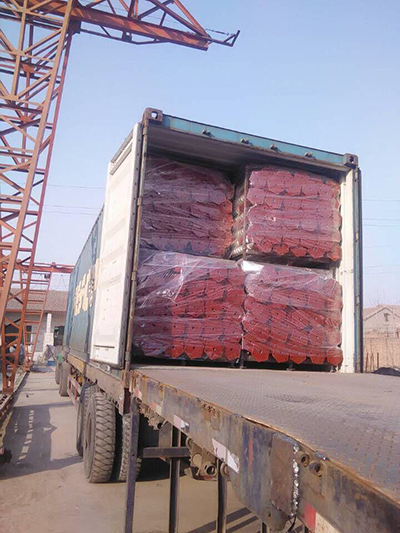

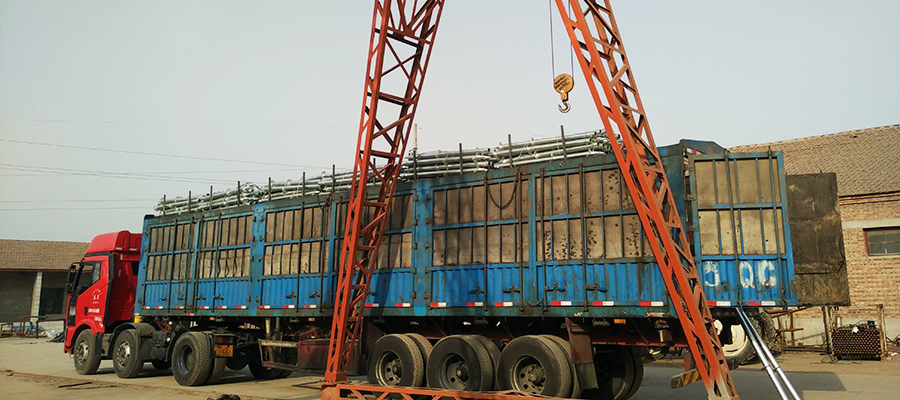

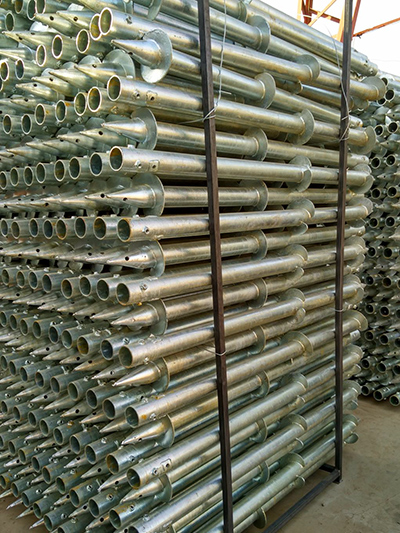

Steel Frame and Pallet Packing
M80X8X6000
Length: 6m Adjustable by welding or cutting as customer requirement.
Strip Width: 16-200mm
Thickness: 3-15mm
Pitch: 24-300mm
|
Diameter (mm) |
Thickness(mm) |
Pullout resistance (N) |
Carrying Capacity (N) |
|
80 |
6 |
6526 |
4126 |
|
80 |
8 |
12769 |
5086 |
|
80 |
10 |
12818 |
5116 |
|
100 |
6 |
6918 |
4865 |
|
100 |
8 |
8408 |
5699 |
|
100 |
10 |
14919 |
7042 |
|
120 |
12 |
16725 |
94526 |

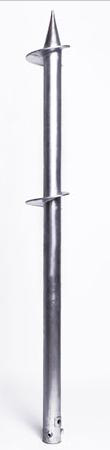

L76X2500X3.75
Spiral blade Diameter: 176, 235, 250, 300mm
Thickness: 4mm/5mm, Pitch: 600mm
Pipe Diameter: 48, 60, 68, 76, 89, 114mm
Pipe Thickness: 3, 3.5, 3.75, 4mm,
HDG Thickness: >80um,
Length: 1200, 1600, 1800, 2000, 2500, 3000, 3500mm.
Connection Method: Bolts or Flange
Bolt: 3XM16
Flange Thickness: 8mm.
Drawing force: 10.7-28.5KN
Bearing capacity: 20-40KN
Horizontal torsion: 4.5-10.5KN
D76X2500X3.75
Spiral Diameter: 176, 235, 250, 300mm,
Spiral Thickness: 4mm, 5mm, Pitch: 600mm
Pipe Diameter: 48, 60, 68, 76, 89, 114
Pipe Thickness: 3, 3.5, 3.75, 4mm
Length: 1200, 1600, 1800, 2000, 2500, 3000, 3500mm
HDG Thickness: >80um
Connection with bracket: bolt or flange
Bolts: 3XM16, flange thickness 8mm
Drawing force: 10.7-28.5KN
bearing capacity: 20-40KN
horizontal torsion: 4.5-10.5KN
Other
|

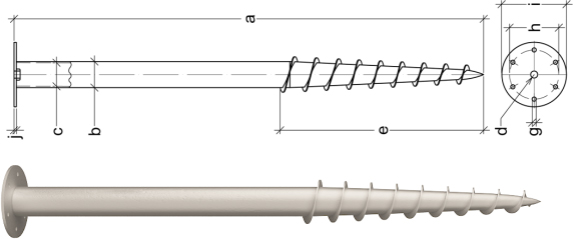

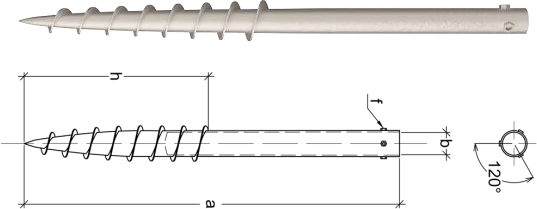

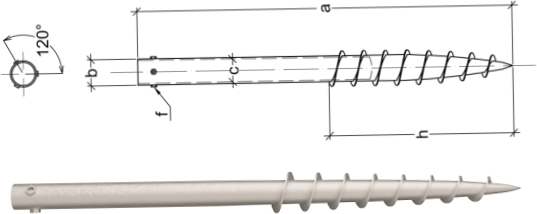

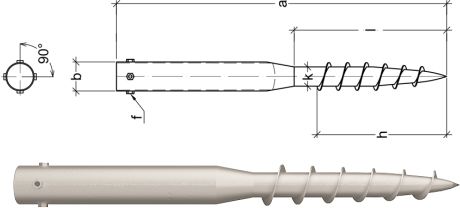

Feature |
N90X800X2.0 |
N90X1000X2.0 |
N76X1500X3.0 |
|
|
Length, mm (±30mm) |
(a) |
800 |
1000 |
1500 |
|
OD, mm |
(b) |
88.9 |
88.9 |
88.9 |
|
ID, mm |
(c) |
64,4 |
84.9 |
84.9 |
|
Fastener size |
(f) |
3 x М16 |
3 x М16 |
3 x М16 |
|
length of thread, mm |
(h) |
500 |
500 |
900 |
|
Weight, Kg |
4 |
4.9 |
10.8 |
|
|
Max. Lateral Load |
FRd, h (kN) |
2.5 |
3.2 |
5.7 |
|
Force deformation |
MRd (kNm) |
3.224 |
3.224 |
4.314 |
|
Max vertical load |
FRd, c (kN) |
10.5 |
14.5 |
23.25 |
|
Max traction load |
FRd, t (kN) |
6 |
7.5 |
13.75 |
|
Feature |
N68X800X2.0 |
N68X1000X2.0 |
|
|
Length, mm (±30mm) |
(a) |
800 |
1000 |
|
OD, mm |
(b) |
68 |
68 |
|
ID, mm |
(c) |
64.4 |
64.4 |
|
Fastener size |
(f) |
3 x М16 |
3 x М16 |
|
length of thread, mm |
(h) |
400 |
500 |
|
Weight, Kg |
2.3 |
3.4 |
|
|
Max. Lateral Load |
FRd, h (kN) |
3.5 |
4.5 |
|
Force deformation |
MRd (kNm) |
1.834 |
1.834 |
|
Max vertical load |
FRd, c (kN) |
13.5 |
16.5 |
|
Max traction load |
FRd, t (kN) |
7 |
9.5 |
|
Feature |
N76X800X2.0 |
N76X1000X2.0 |
N76X1200X2.0 |
N76X1200X3.0 |
N76X1600X3.0 |
|
| Length (±30mm) |
(a) |
800 |
1000 |
1200 |
1200 |
1600 |
| OD, mm |
(b) |
76 |
76 |
76 |
76 |
76 |
| ID, mm |
(c) |
72 |
72 |
72 |
72 |
72 |
| Fastener size |
(f) |
3 x М16 |
3 x М16 |
3 x М16 |
3 x М16 |
3 x M16 |
| length of thread, mm |
(h) |
500 |
500 |
500 |
500 |
500 |
| Weight, Kg |
3.3 |
7.78 |
4.9 |
7 |
9.5 |
|
| Max. Lateral Load |
FRd, h (kN) |
3.5 |
4.5 |
5.5 |
5.5 |
8.5 |
| Force deformation |
MRd (kNm) |
1.834 |
1.834 |
1.834 |
3.097 |
3.097 |
| Max vertical load |
FRd, c (kN) |
13.5 |
16.5 |
18.5 |
25 |
35 |
| Max traction load |
FRd, t (kN) |
7 |
9.5 |
11.5 |
12.5 |
21.5 |
|
Feature |
N102X500X3.0+68X500X2.5 |
N102X500X3.0+68X700X2.5 |
N102X500X3.0+68X900X2.5 |
|
|
Length (±30mm) |
(a) |
1000 |
1200 |
1600 |
|
OD, mm |
(b) |
102 |
102 |
102 |
|
ID, mm |
(c) |
96 |
96 |
96 |
|
Diameter, mm |
(k) |
68 |
68 |
68 |
|
Fastener size |
(f) |
4 x М16 |
4 x М16 |
4 x M16 |
|
length of thread, mm |
(h) |
500 |
500 |
900 |
|
Weight, Kg |
5.6 |
9 |
9.3 |
|
|
Max. Lateral Load |
FRd, h (kN) |
7.5 |
9.5 |
10 |
|
Force deformation |
MRd (kNm) |
8.06 |
8.06 |
8.06 |
|
Max vertical load |
FRd, c (kN) |
30 |
35 |
37 |
|
Max traction load |
FRd, t (kN) |
15.5 |
20.5 |
20.9 |
|
Feature |
N114X1200X3.0 |
N114X1600X3.0 |
N114X1800X3.0 |
N114X2000X3.0 |
|
|
Length (±30mm)
|
(a) |
1200 |
1600 |
1800 |
2000 |
|
OD, mm |
(b) |
114 |
114 |
114 |
114 |
|
ID, mm |
(c) |
108 |
108 |
108 |
108 |
|
Fastener size |
(f) |
4 x М16 |
4 x М16 |
4 x M16 |
4 x M16 |
|
Length of thread, mm |
(h) |
500 |
900 |
1100 |
1100 |
|
Weight, Kg |
12.45 |
15.9 |
17.62 |
19.35 |
|
|
Feature |
N114X1200X3.75 |
N114X1600X3.75 |
N114X1800X3.75 |
N114X2000X3.75 |
|
|
Length, mm (±30mm) |
(a) |
1200 |
1600 |
1800 |
2000 |
|
OD, mm |
(b) |
114 |
114 |
114 |
114 |
|
ID, mm |
(c) |
106.5 |
106.5 |
106.5 |
106.5 |
|
Fastener size |
(f) |
4 x М16 |
4 x М16 |
4 x M16 |
4 x M16 |
|
Length of thread, mm |
(h) |
500 |
900 |
1100 |
1100 |
|
Weight, Kg |
14.95 |
19.23 |
21.37 |
23.51 |
|
|

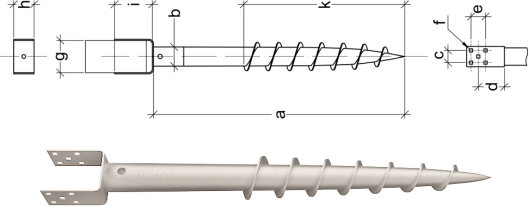

Feature |
U71X800X1.8 |
U91X800X1.8 |
U111X1000X1.8 |
|
|
Length, mm ((±30mm) |
(a) |
670 |
670 |
870 |
|
OD, mm |
(b) |
68 |
68 |
68 |
|
(c) |
42 |
106.5 |
106.5 |
|
|
(e) |
50 |
50 |
50 |
|
|
d |
90 |
90 |
90 |
|
|
h |
70 |
70 |
70 |
|
|
i |
130 |
130 |
130 |
|
|
g |
71 |
91 |
111 |
|
|
Thread length (mm) |
|
400 |
400 |
400 |
|
Weight, Kg |
2.6 |
2.7 |
3.1 |
|
|

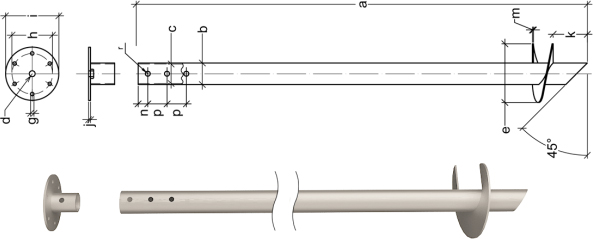

Feature |
V114X3000X3.75 |
V88.9X3000X3.75 |
|
| Length (±30mm) |
(a) |
3000 |
3000 |
| OD, mm |
(b) |
114 |
88.9 |
| ID, mm |
(c) |
106.5 |
81.4 |
| Flange thickness, mm |
(j) |
8 |
8 |
|
h |
167 |
167 |
|
|
i |
220 |
220 |
|
|
g |
14 |
14 |
|
|
d |
M24 |
M24 |
|
|
P |
80 |
80 |
|
|
n |
40 |
40 |
|
|
r |
20 |
20 |
|
|
e |
300 |
300 |
|
|
m |
8 |
8 |
|
|
k |
150 |
150 |
|
| Weight, Kg |
73 |
36.7 |
|
|
Feature |
F76X1200X2.5 |
F76X2000X3.0 |
F76X2500X3.0 |
F76X3000X3.0 |
|
|
Length (±30mm) |
(a) |
1200 |
2000 |
2500 |
3000 |
|
OD, mm |
(b) |
76 |
76 |
76 |
76 |
|
ID, mm |
(c) |
70 |
70 |
70 |
68.8 |
|
length of thread, mm |
(e) |
600 |
1100 |
1400 |
1400 |
|
Flange thickness, mm |
(j) |
8 |
8 |
8 |
8 |
|
h |
167 |
167 |
167 |
167 |
|
|
i |
220 |
220 |
220 |
220 |
|
|
g |
14 |
14 |
14 |
14 |
|
|
d |
M24 |
M24 |
M24 |
M24 |
|
|
Weight, Kg |
8.3 |
14 |
17 |
22.6 |
|
|
Feature |
F76X2000X3.75 |
F76X2500X3.75 |
F76X3000X3.75 |
F76X3500X3.75 |
|
|
Length (±30mm) |
(a) |
2000 |
2500 |
3000 |
3500 |
|
OD, mm |
(b) |
76 |
76 |
76 |
76 |
|
ID, mm |
(c) |
68.5 |
68.5 |
68.5 |
68.5 |
|
length of thread, mm |
(e) |
1100 |
1400 |
1400 |
1400 |
|
Flange thickness, mm |
(j) |
8 |
8 |
8 |
8 |
|
h |
167 |
167 |
167 |
167 |
|
|
i |
220 |
220 |
220 |
220 |
|
|
g |
14 |
14 |
14 |
14 |
|
|
d |
M24 |
M24 |
M24 |
M24 |
|
|
Weight, Kg |
17.9 |
22.2 |
25.6 |
29.1 |
|
|
Feature |
F88.9X2000X3.0 |
F88.9X2500X3.0 |
F88.9X3000X3.0 |
F88.9X3500X3.0 |
|
|
Length (±30mm) |
(a) |
2000 |
2500 |
3000 |
3500 |
|
OD, mm |
(b) |
88.9 |
88.9 |
88.9 |
88.9 |
|
ID, mm |
(c) |
82.9 |
82.9 |
81.7 |
81.7 |
|
length of thread, mm |
(e) |
1100 |
1400 |
1400 |
1400 |
|
Flange thickness, mm |
(j) |
8 |
8 |
8 |
8 |
|
h |
167 |
167 |
167 |
167 |
|
|
i |
220 |
220 |
220 |
220 |
|
|
g |
14 |
14 |
14 |
14 |
|
|
d |
M24 |
M24 |
M24 |
M24 |
|
|
Weight, Kg |
15.6 |
19.5 |
26.1 |
32.8 |
|
|
Feature |
F88.9X2000X3.75 |
F88.9X2500X3.75 |
F88.9X3000X3.75 |
F88.9X3500X3.75 |
|
|
Length (±30mm) |
(a) |
2000 |
2500 |
3000 |
3500 |
|
OD, mm |
(b) |
88.9 |
88.9 |
88.9 |
88.9 |
|
ID, mm |
(c) |
81.4 |
81.4 |
81.4 |
81.4 |
|
length of thread, mm |
(e) |
1100 |
1400 |
1600 |
1600 |
|
Flange thickness, mm |
(j) |
8 |
8 |
8 |
8 |
|
h |
167 |
167 |
167 |
167 |
|
|
i |
220 |
220 |
220 |
220 |
|
|
g |
14 |
14 |
14 |
14 |
|
|
d |
M24 |
M24 |
M24 |
M24 |
|
|
Weight, Kg |
20 |
24.6 |
26.8 |
32.8 |
|
|
Feature |
F114X2500X3.0 |
F114X3000X3.0 |
F114X3500X3.0 |
|
|
Length, mm (±30mm) |
(a) |
2000 |
2500 |
3000 |
|
OD, mm |
(b) |
114 |
114 |
114 |
|
ID, mm |
(c) |
108 |
106.8 |
106.8 |
|
length of thread, mm |
(e) |
1400 |
1600 |
1600 |
|
Flange thickness, mm |
(j) |
8 |
8 |
8 |
|
h |
167 |
167 |
167 |
|
|
i |
220 |
220 |
220 |
|
|
g |
14 |
14 |
14 |
|
|
d |
M24 |
M24 |
M24 |
|
|
Weight, Kg |
24.9 |
33.5 |
38.4 |
|
|
Feature |
F114X2500X3.75 |
F114X3000X3.75 |
F114X3500X3.75 |
|
|
Length, mm (±30mm) |
(a) |
2000 |
2500 |
3000 |
|
OD, mm |
(b) |
114 |
114 |
114 |
|
ID, mm |
(c) |
106.5 |
106.5 |
106.5 |
|
length of thread, mm |
(e) |
1400 |
1600 |
1600 |
|
Flange thickness, mm |
(j) |
8 |
8 |
8 |
|
h |
167 |
167 |
167 |
|
|
i |
220 |
220 |
220 |
|
|
g |
14 |
14 |
14 |
|
|
d |
M24 |
M24 |
M24 |
|
|
Weight, Kg |
31.3 |
36.7 |
41.6 |
|
|
Feature |
F219 X2500X4 |
F219X3000X4 |
F219X3500X4 |
|
|
Length, mm (±30mm) |
(a) |
2500 |
3000 |
3500 |
|
OD, mm |
(b) |
219 |
219 |
219 |
|
ID, mm |
(c) |
211 |
211 |
211 |
|
length of thread, mm |
(e) |
1400 |
1600 |
1600 |
|
Flange thickness, mm |
(j) |
12 |
12 |
12 |
|
h |
167 |
167 |
167 |
|
|
i |
220 |
220 |
220 |
|
|
g |
14 |
14 |
14 |
|
|
d |
M24 |
M24 |
M24 |
|
|
Weight, Kg |
59.45 |
70.58 |
81.72 |
|
|
Drawing force |
95 KN |
|||
|
Bearing capacity |
150 KN |
|||
|
Horizontal torque |
45 KN |
|||
Application
1. For Garden or lawn.
2. For soft soil or sand.
3. For Solar Station.

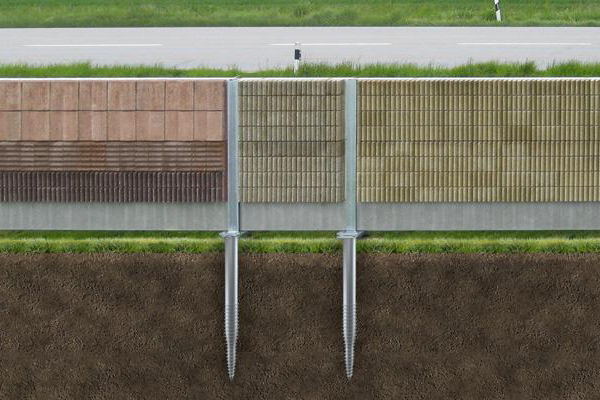

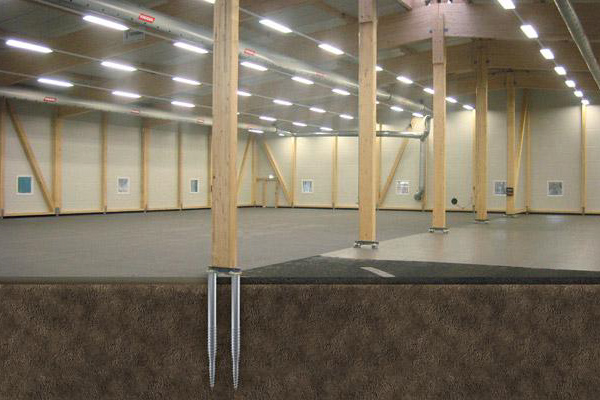

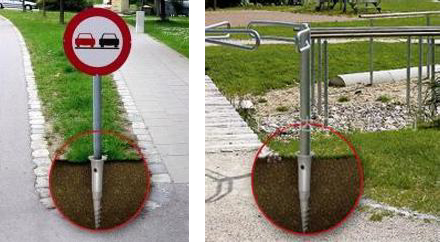

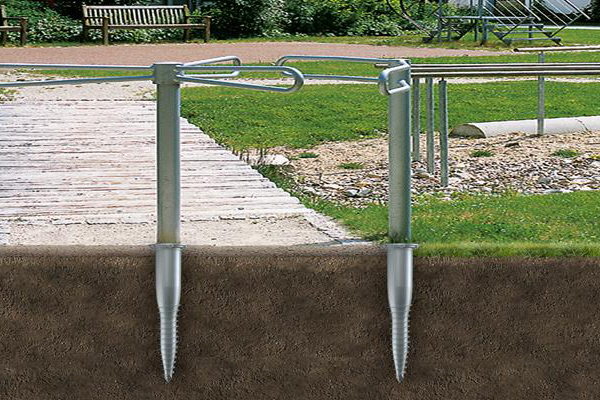

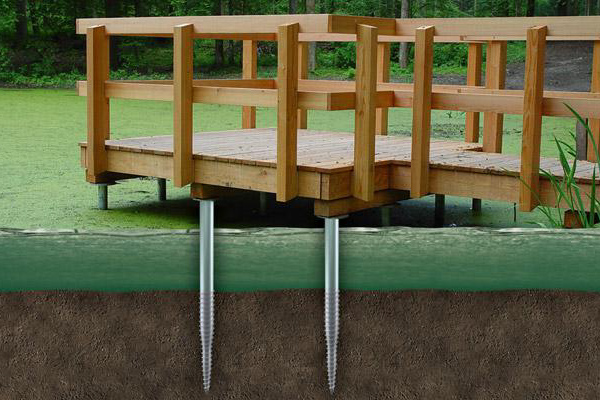

4. For fence, road signs, billboards, Advertising board, wooden building foundation.

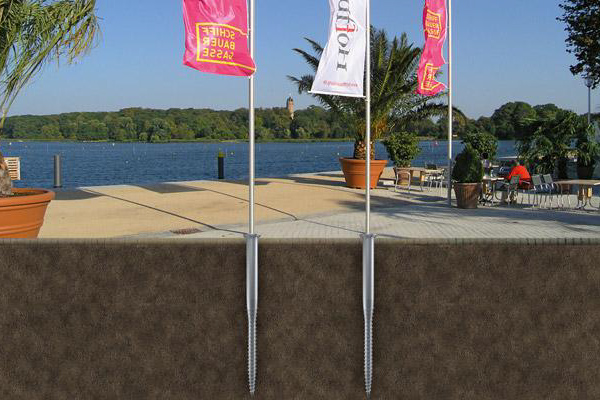

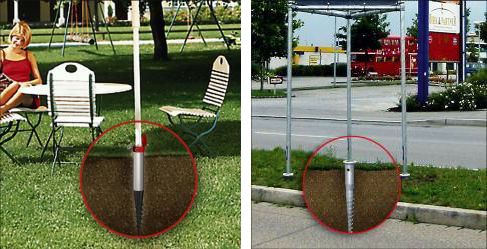

5. For fixing tents, activities room, greenhouse, flagpole, fence, etc. Long-term repeated use.
Packing & Delivery
