Pipe Auto Tapering Machine
Feature
With Hydraulic feeding, low noise, easy operation, high output and stable performance.
The forming time is short, the efficiency is high, the processing surface is smooth, and the workpiece has no scratches.
The machine mold is easy to change, and metal pipes of different shapes can be processed with the corresponding molds to meet different needs.
Application

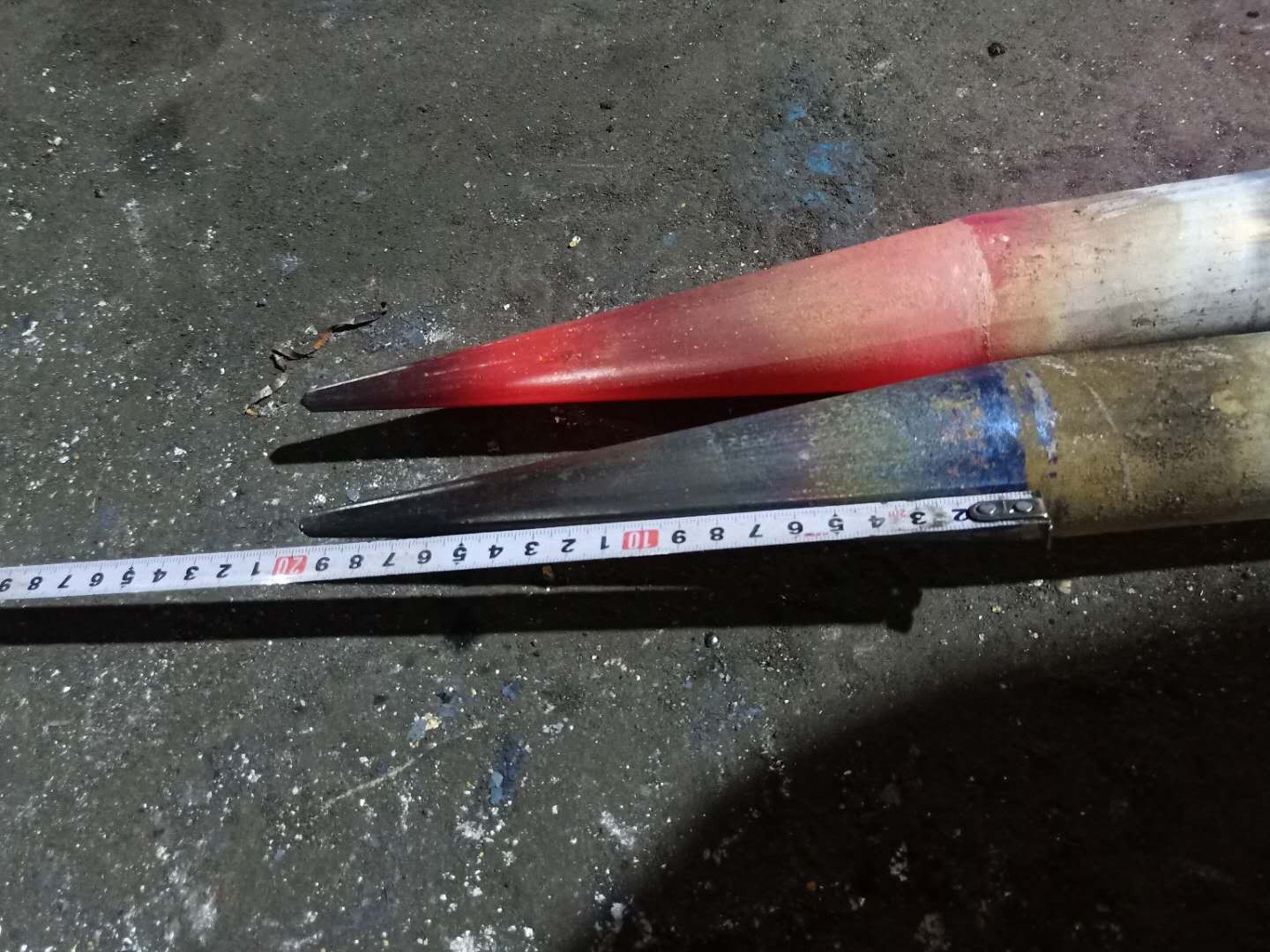

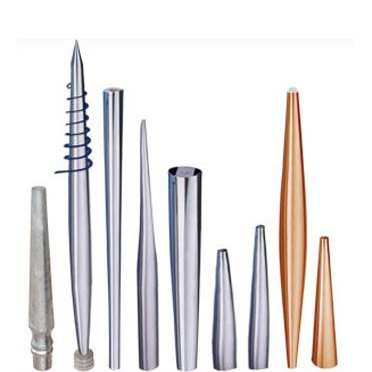

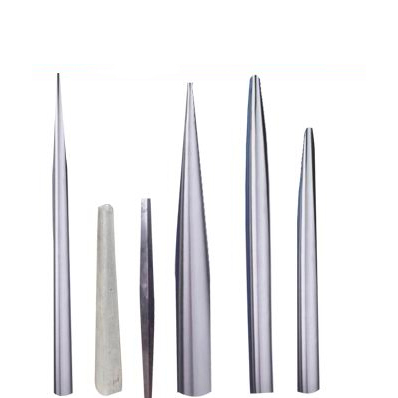

Applicable to the taper forming process for automobiles, furniture, lighting, bicycles, grouting small catheters etc.
Working Principle

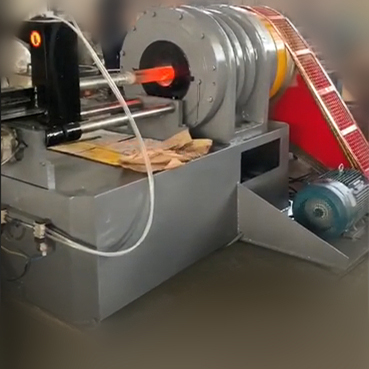

The end of the steel pipe is superposed to be heated by Electromagnetic Induction Furnace, when a certain temperature is reached, steel pipe end insert into the tapering machine, pipe end is hit by the forming mold while mechanical transmission the pipe, until it reaches the required shape.
Main Technical Parameters
Main technical parameters
Working voltage main line 380 V 50HZ
Oil pump motor power AB-25 0.9KW 1420R/M
| Model | Description | Pipe Max Diameter | Max Thickness | Max Tpaered Length | Mold Length | Spindle speed Rpm | Power Kw | Machine Size | Machine Weight |
| ST-01 76*4* 340 | With Hydraulic cylinder | 76 | 4 | 340 | 360 | 248 | 11 | 2.9*1.7*1.5 | 2.5 |
| ST-02 114*5*380 | With Hydraulic cylinder | 114 | 5 | 380 | 400 | 248 | 15 | 3*1.8*1.7 | 3 |
| ST-03 140*6*430 | With Hydraulic cylinder | 140 | 6 | 430 | 450 | 248 | 18 | 3.5*1.8*1.7 | 5 |
Construction
| Item | Name | Spec. | Qty | Brand |
| 1 | Motor | 1 | Bao ding hao ye | |
| 2 | Contactor | 2 | Chint | |
| 3 | Time Relay | 3 | Delixi | |
| 4 | Relay | 2 | XIN MEI | |
| 5 | Heat protector | 3 | XIN MEI | |
| 6 | Switch button | 6 | Delixi | |
| 7 | Cabinet | 2 | ||
| 8 | Foot switch | 1 | Delixi | |
| 9 | Electromagnetic valve | 2 | D＆C | |
| 9 | Clamping cylinder | 125*200 | 1 | ZGXCL |
| 10 | Feeding cylinder | 125*600 | 1 | ZGXCL |
| 11 | Water separator | 1 | AIRTAG | |
| 13 | Water pump | 125v | 1 | JINQUAN |

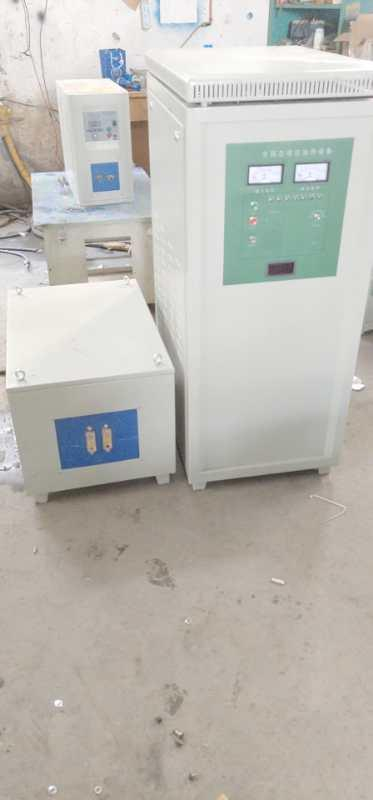

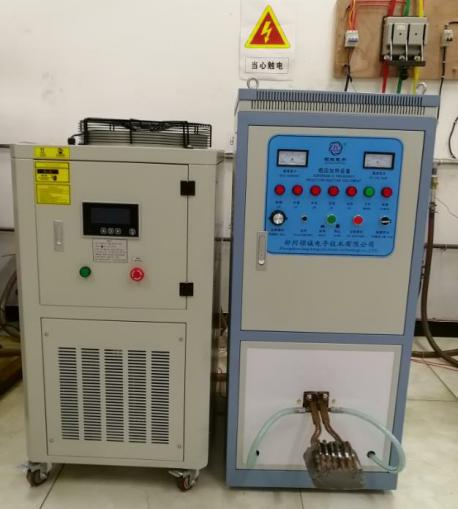

High Frequency Furnace for Ground Screw Pipe Heating
Advantages:
Quick heating, convenient installation, small size, light weight and convenient use;
Fast start, less power consumption, good effect, fast heating, less oxide, no waste after annealing;
Adjustable power, adjustable speed.
Main technical parameters:
Input power: 90Kw, 120Kw, 160Kw. Input voltage: 380V 50-60HZ.
We recommend 90Kw furnace to match tapring machine ST-01 76*4*340, 120Kw Furnace to match Tapering Machine ST-02 114*5*380, 160Kw Furnace to match Tapering Machine ST-03 140*6*430.
Detail Picture

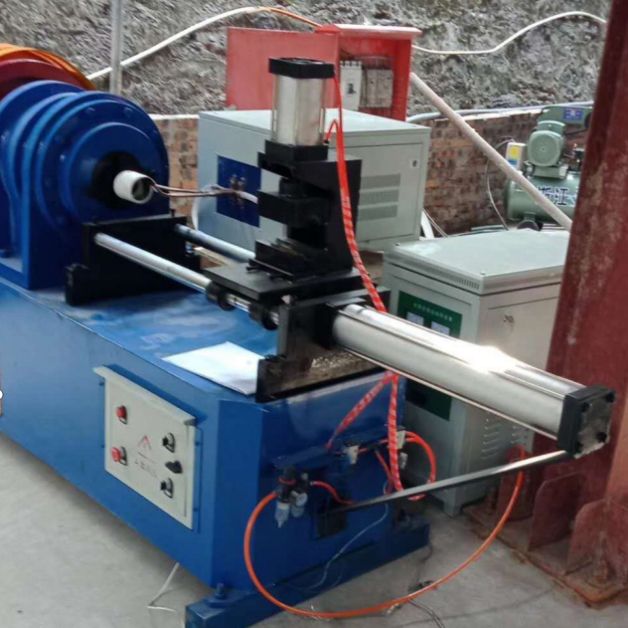

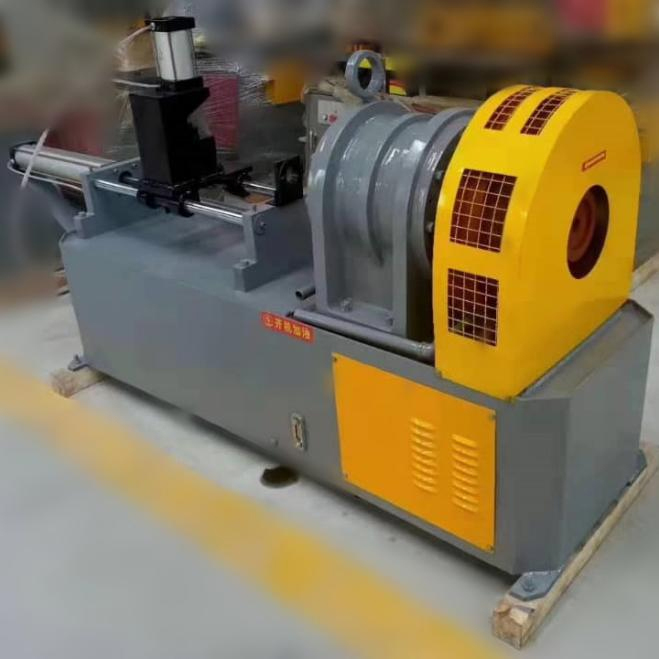

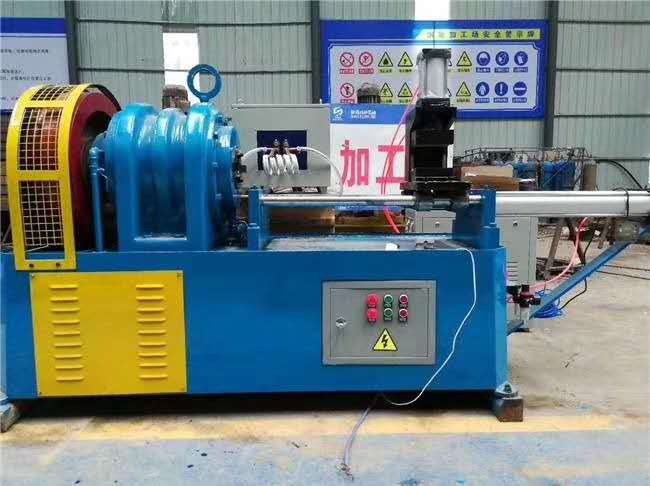

With Hydraulic feeding, low noise, easy operation, high output and stable performance.

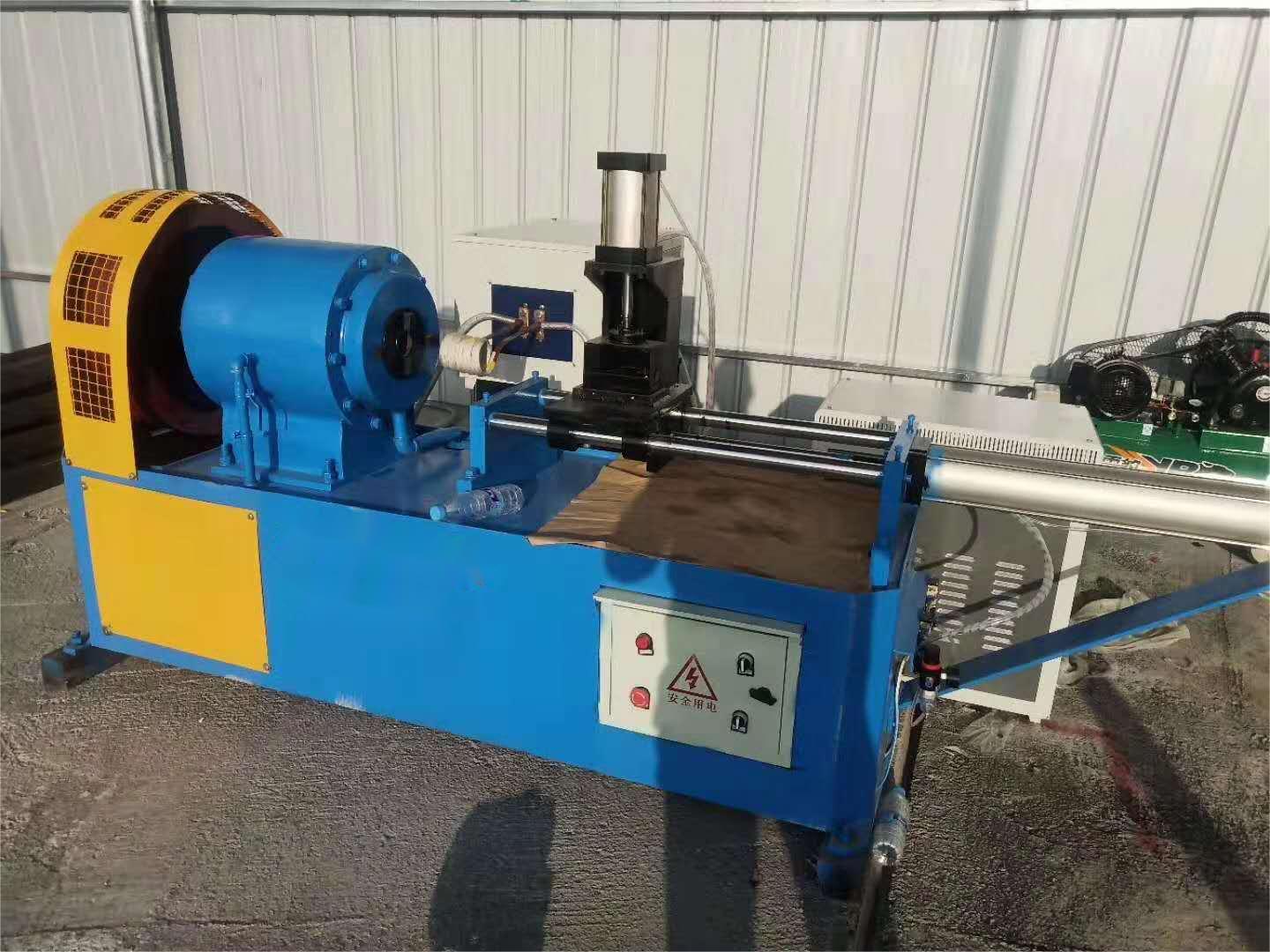

The forming time is short, the efficiency is high, the processing surface is smooth, and the workpiece has no scratches.

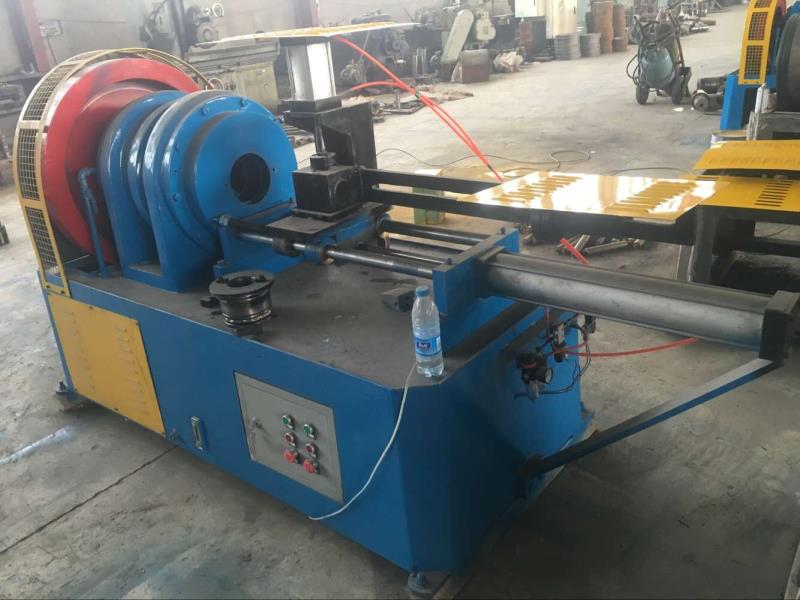

The machine mold is easy to change, and metal pipes of different shapes can be processed with the corresponding molds to meet different needs.
