Vertical Auger Beater – Parts of Manure Spreader

Short Description:

Manure Spreader Spare Parts
Twin Vertical Auger Fertilizer Manure Spreader Machine
A new type of Agricultural Machinery that uses tractor as the power to throw livestock manure, fermented organic fertilizer and manure (including compost) into the field.
The machine feeds the fertilizer system, and the hydraulic output of the tractor drives the hydraulic motor to work, and the whole tank fertilizer is synchronously moved by the fertilizer feeding device;

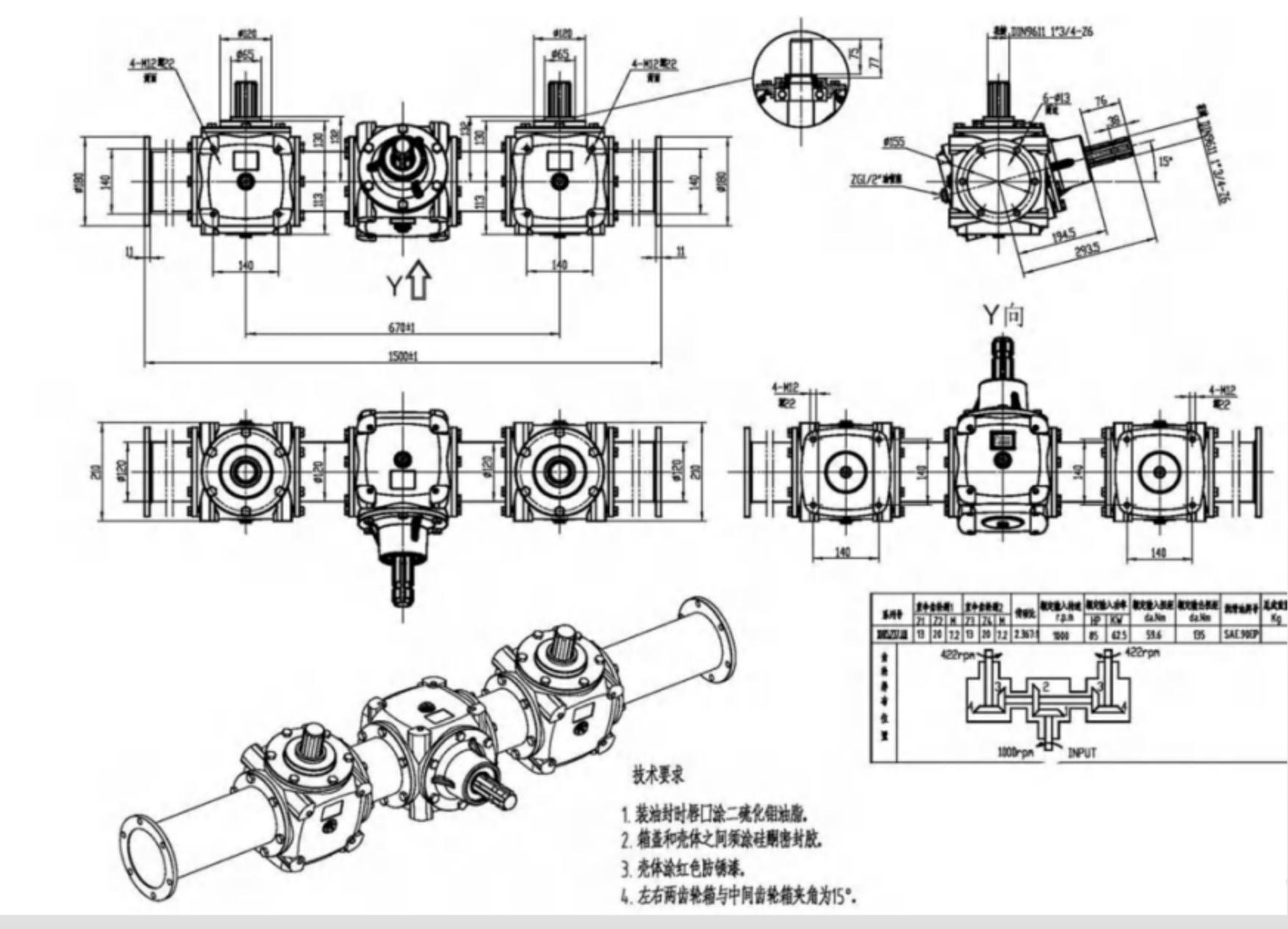

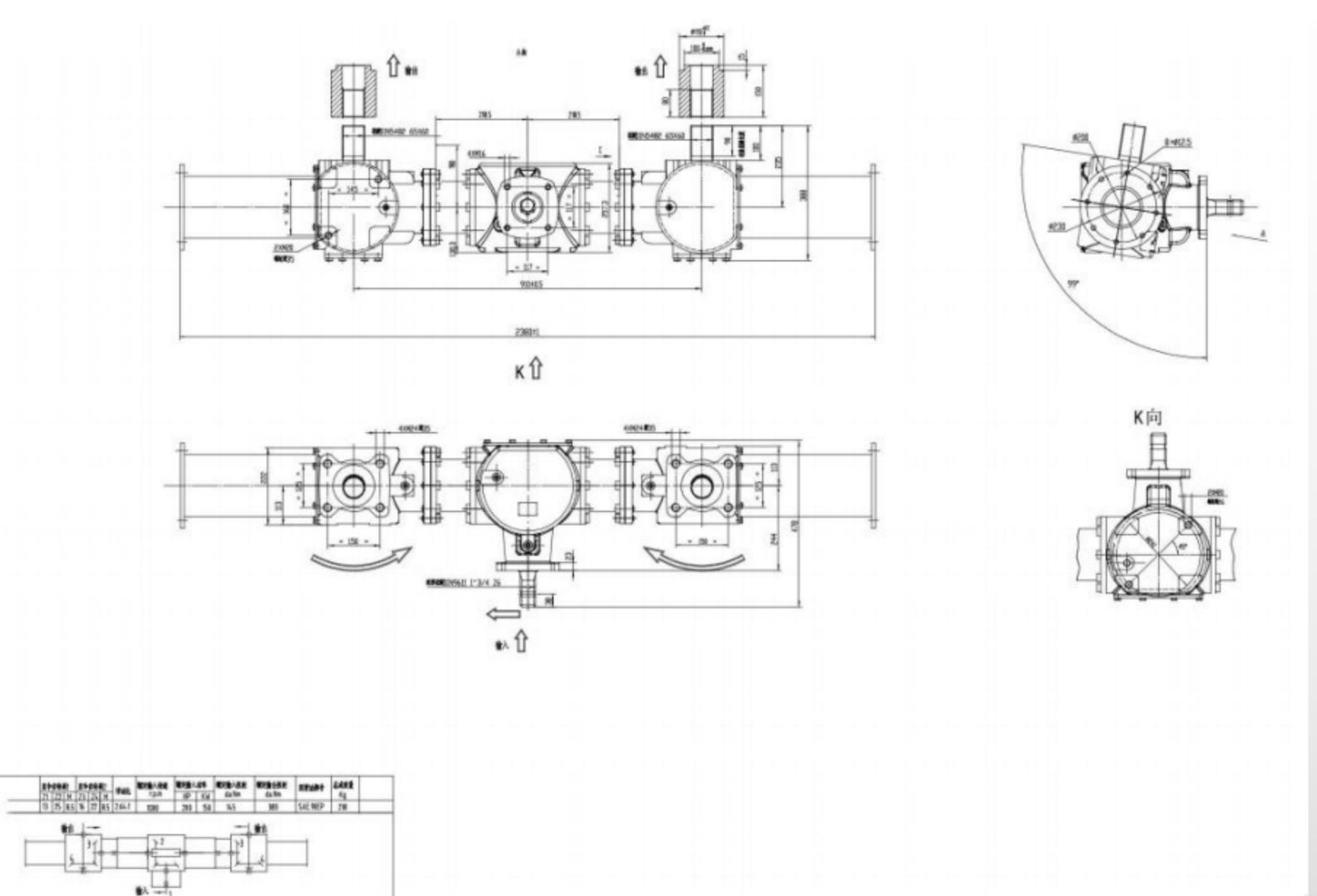

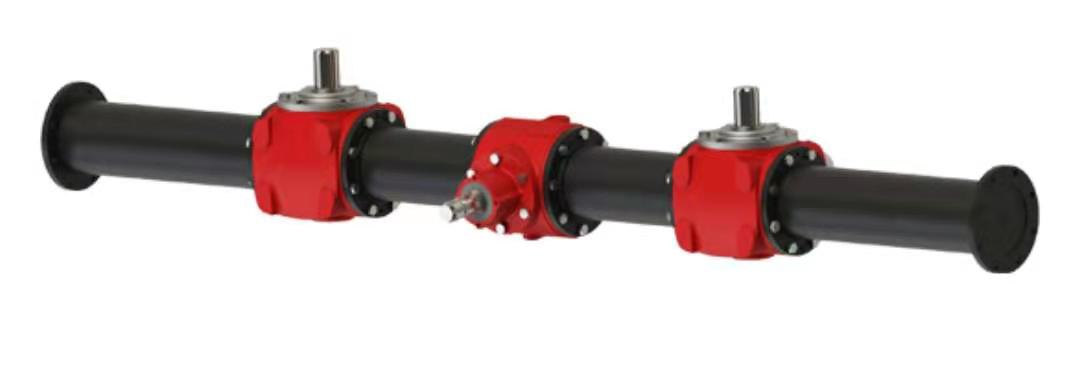

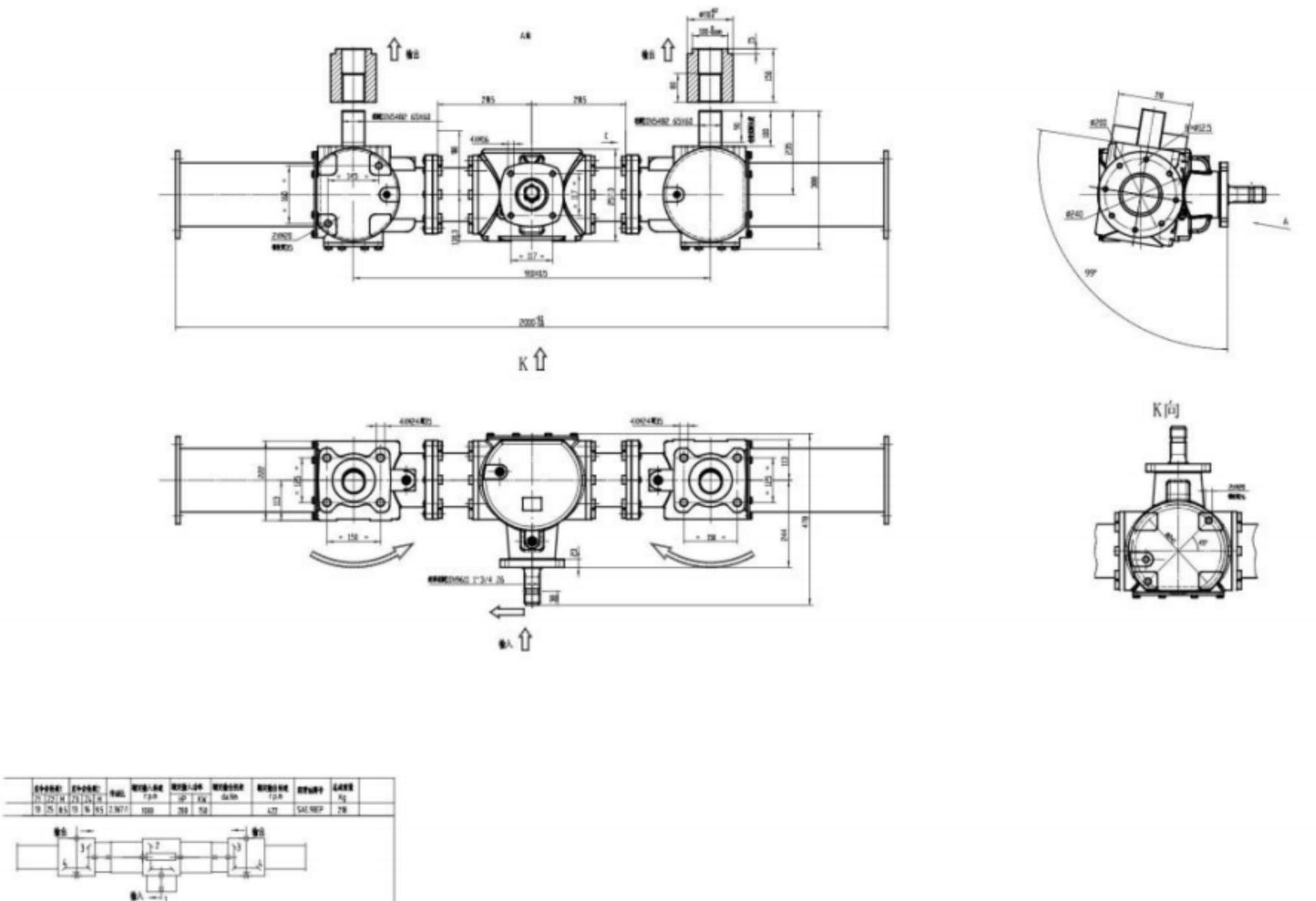

The machine spreading system is driven by the tractor power output shaft, and drives the auger to break through the triple gear box.
Fertilizer, at the same time double spreader plate with auger to fully spread the fertilizer

Send email to us

Product Detail

Product Tags

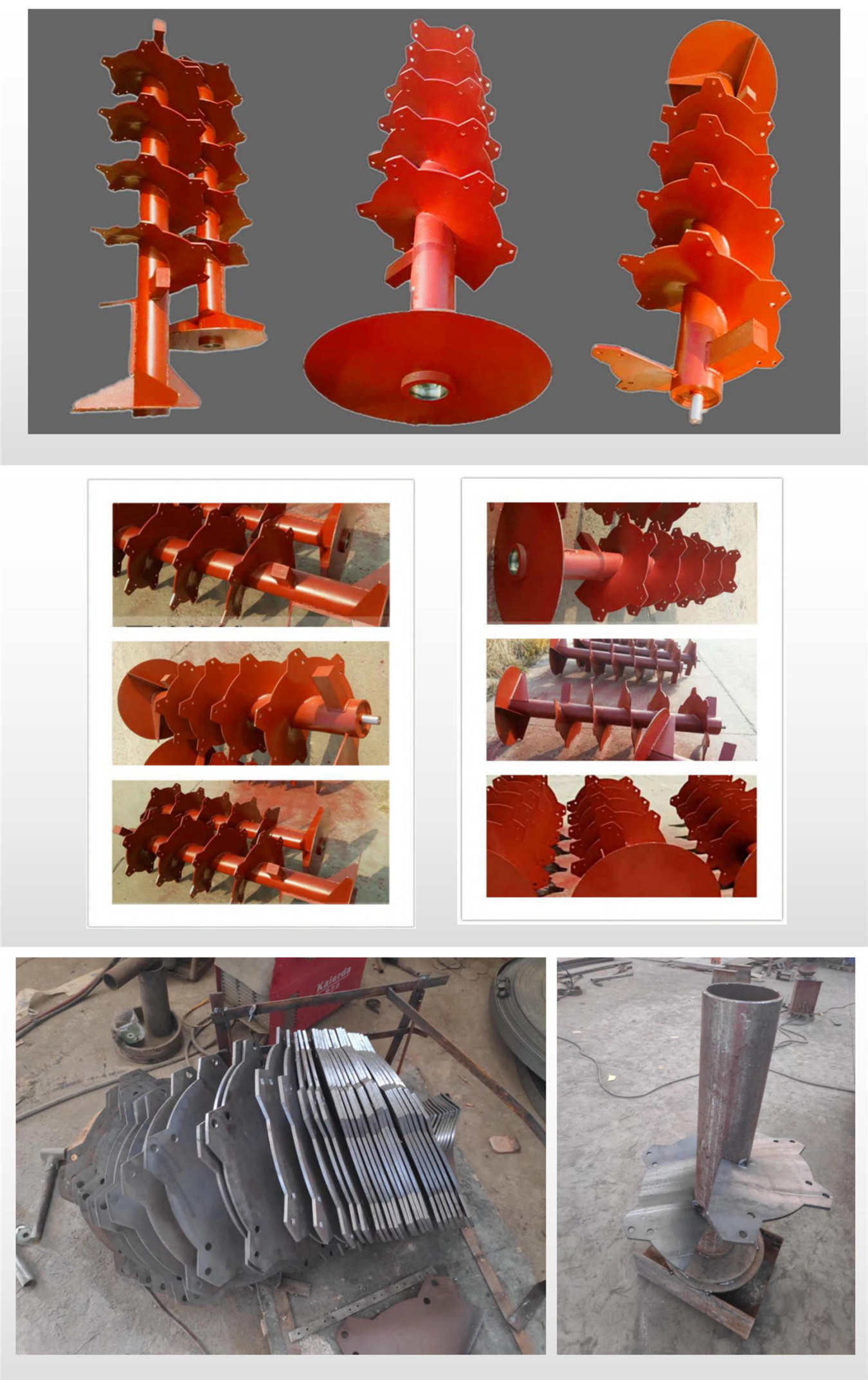

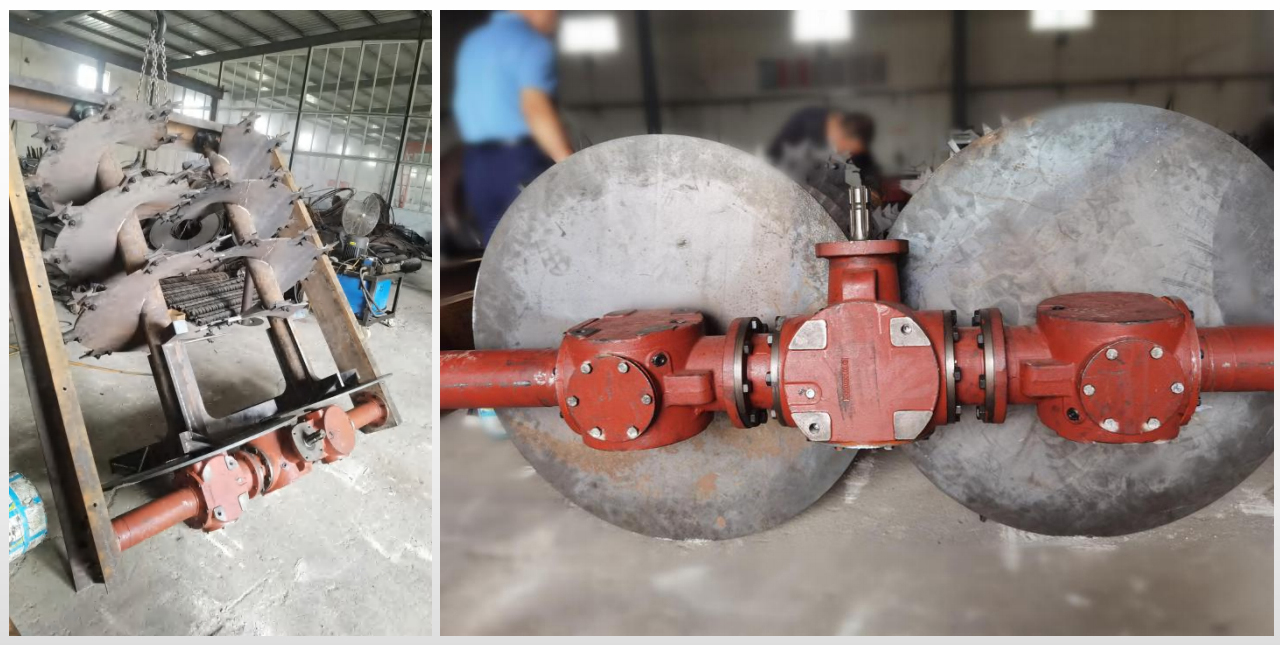

Vertical Auger Beat

Diameter: 900mm – 620mm, Thickness: 12mm – 10mm.
Vertical Beater Material: S355 High quality spring manganese steel.
High hardness, good wear resistance, corrosion resistance, long service life and strong crushing ability.
It can effectively break up the thrown organic materials and effectively spread the livestock manure into the field.
Uniform Smashing , Spiral Blade replacement is convenient.
It can improve the effectiveness of soil nutrients, improve soil structure, improve soil fertility and water retention, reduce soil pollution of manure, and play an important role in the mechanization of livestock and poultry manure

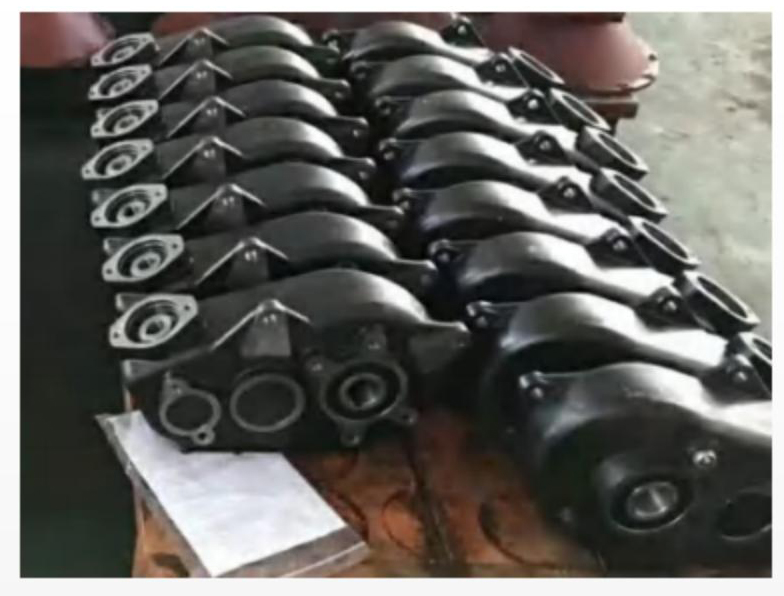

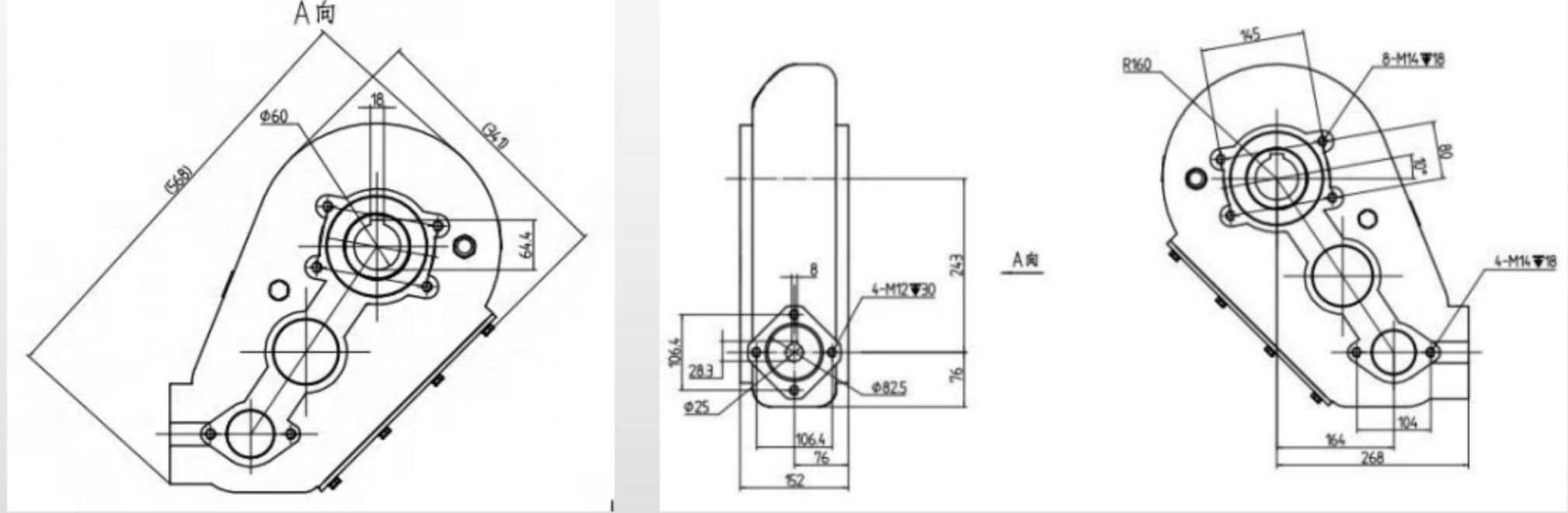

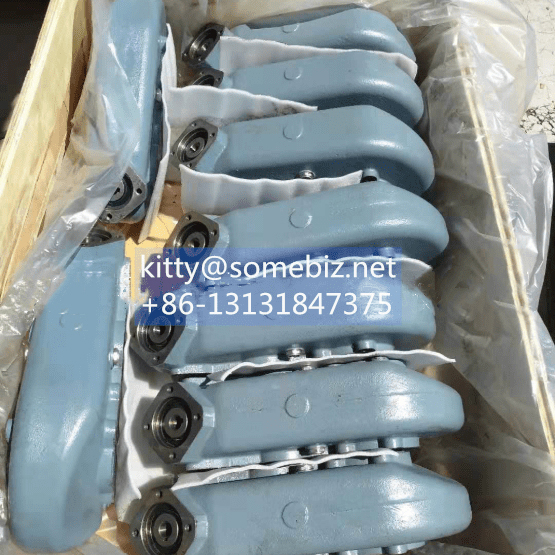

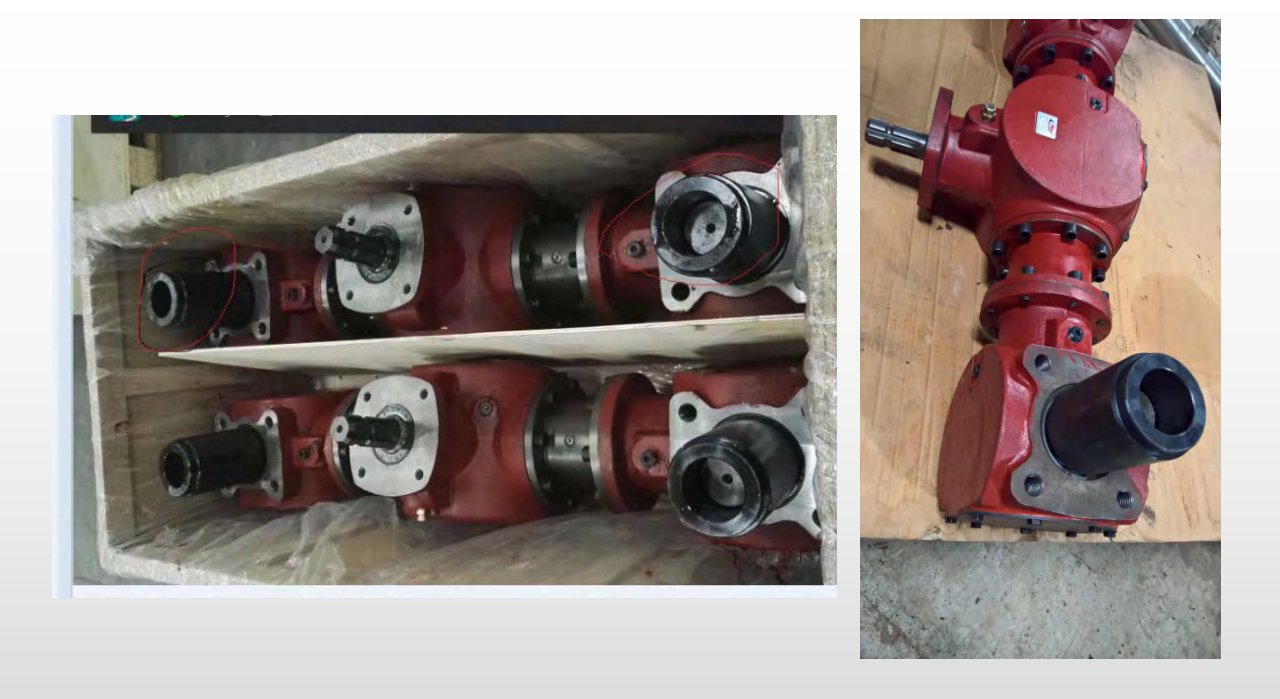

Gearbox for Floor Chain Scraper Driving

Hydraulic Motor Gearbox.
Applied to low-speed and high-torque conditions, and is specially designed for driving the scraper.
Application: Widely used in large agricultural machinery such as manure spreaders, combine harvesters, concrete mixers.

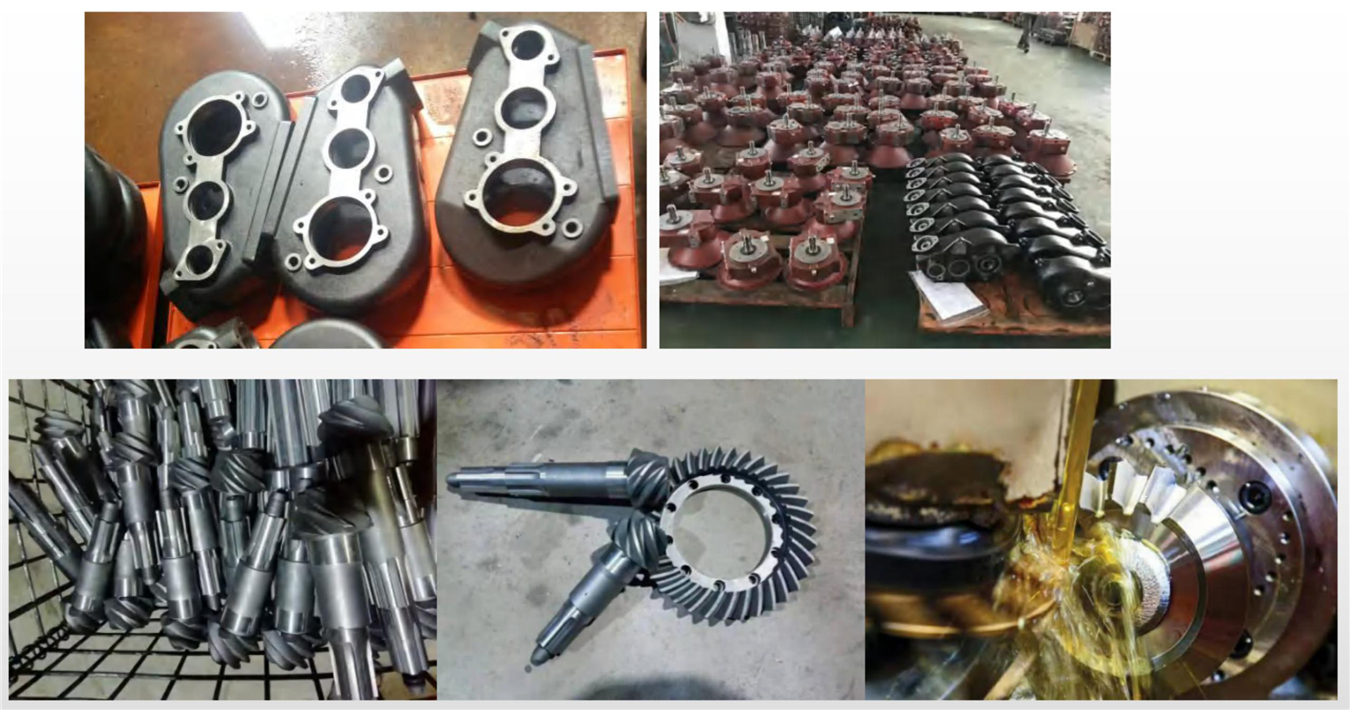

Materials: Gear 16NiCr4, shaft 20MnCr5, casting materials ductile iron In line with international standards.
Stable in operation and reliable in quality.

Vertical Auger Beat

Specification

SpeedRatio	Output Torque	Weight
8.15:1	1500 Nm	30 Kgs
10.2:1	1900 Nm	28 Kgs
16.43:1	2000 Nm	28 Kgs
29.5:1	3000 Nm	37 Kgs
24.3:1	3500 Nm	47 Kgs
43.6:1	5000 Nm	55 Kgs
37.8:1	6000 Nm	68 Kgs
